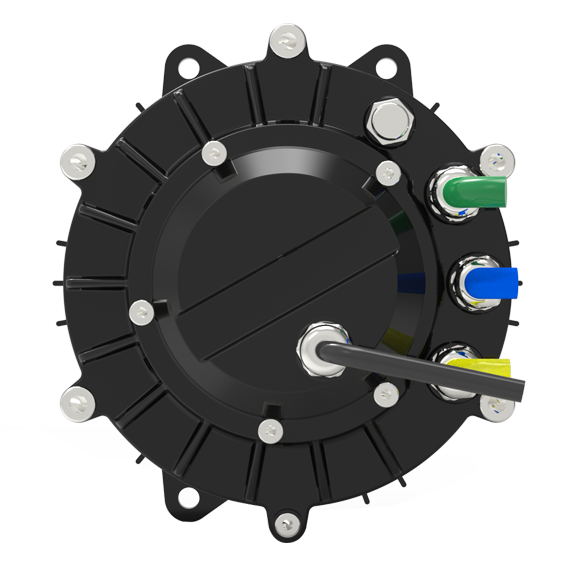

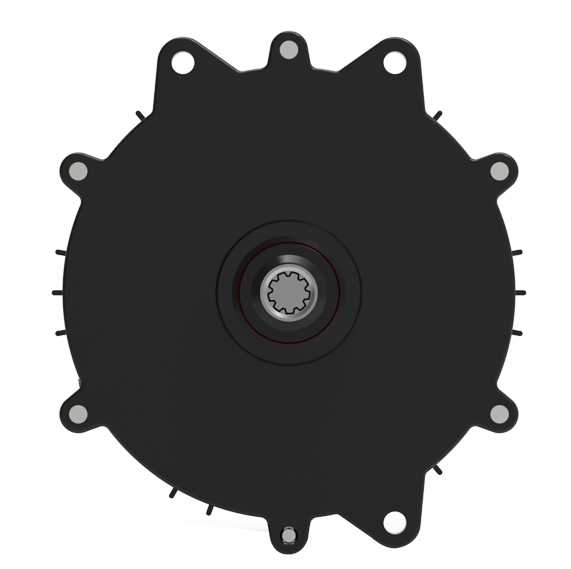

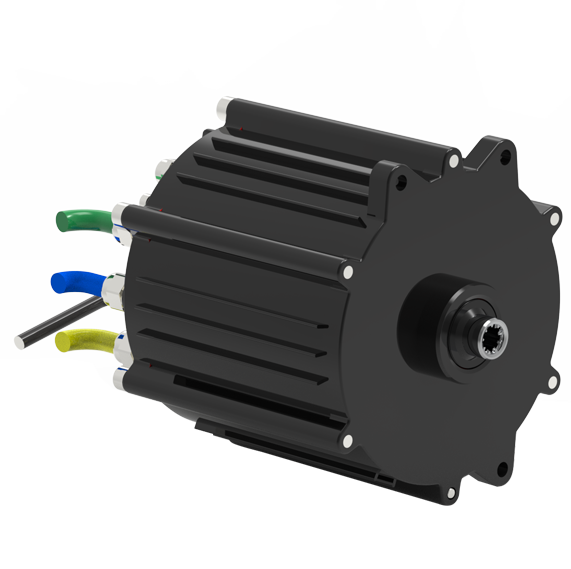

E3中置電機
金宇星——全球領先的電動輕型車電機專家
產品參數:
工作電壓(V): 48-72
額定功率(W): 800-1200
峰值功率(W): 1000-2000
額定轉速: 4500-6000
峰值扭矩(N.m): 17-22
峰值效率(%): ≥90%
防護等級(IP): 67
絕緣等級: H
傳感器類型: 絕對值磁編碼
Working voltage (V): 48-72
Rated power (W): 800-1200
Peak power (W): 1000-2000
Rated speed (rpm): 4500-6000
Peak torque (N.m): 17-22
Peak efficiency (%): ≥90%
Protection level (IP): 67
Insulation level: H
Sensor type: Absolute value magnetic encoder
產品尺寸:
安裝孔直徑: 3-Φ6.2
軸端外徑: Φ16.5(0-0.05)
內花鍵參數: INT9z*1m*20R
軸端至端蓋高度: 22
輪廓最大外直徑: Φ143.5
輪廓最大高度: 159
Installation hole diameter: 3-Φ6.2
Outer diameter of shaft end: Φ16.5(0-0.05)
Internal spline parameters: INT9z*1m*20R
Height from shaft end to end cover: 22
Maximum outer diameter of contour: Φ143.5
Maximum height of the profile: 159
